Forensic disk imaging

Publish date: Sep 15, 2023

Tags:

Today I will share my take on performing forensic disk imaging using a Linux operating system.

I use Debian but my approach can be reproduced on any distribution that uses systemd as the init system.

Preparing the operating system

Ideally forensic imaging should be done using hardware write-blockers, but if that is not an option, Linux operating system can be set up in a way to perform imaging in a forensically sound manner. It is achieved by disabling the “automount” functionality of the operating system.

Whenever we attach a disk device to our computer, all the partitions that contain recognized filesystems are mounted. That is something that we need to avoid to ensure that the data does not get altered.


  systemctl stop udisks2.service


  systemctl mask udisks2.service

Afterwards when running:


  systemctl status udisks2.service

There should be an output like this:

● udisks2.service
     Loaded: masked (Reason: Unit udisks2.service is masked.)
     Active: inactive (dead) since Thu 2023-09-14 21:33:57 EEST; 7s ago
   Main PID: 1220 (code=exited, status=0/SUCCESS)
        CPU: 409ms

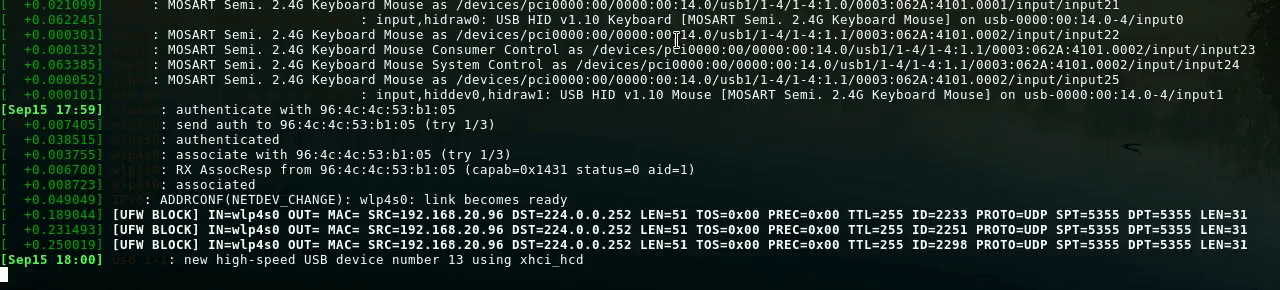

Checking kernel messages in real-time and connecting the drive


  dmesg -Hw

Listing block devices to double check the attached drive


  lsblk

NAME                   MAJ:MIN RM   SIZE RO TYPE  MOUNTPOINT
sda                      8:0    1   7.6G  0 disk
└─sda1                   8:1    1   7.6G  0 part

The attached drive has been assigned to a block device identificator sda, it contains one partition sda1. The drive can be accessed at /dev/sda.

Imaging the drive: choosing the tool

The two tools that I use most often are dcfldd and ewfacquire.

dcfldd is a derrivative of dd, it features hashing on-the-fly and status output by default. Sometimes you have to stick with the default tools, so it should be noted that hashing on-the-fly can be attained by regular dd as well, by using pipes. Also starting from coreutils v.8.24, dd features a progress bar which can be called by attaching a simple “status=progress” at the end of the command.

ewfacquire is a part of the ewf-tools package. It acquires data in the Expert Witness Format (EWF, extension .E01). This is a widely accepted forensic image format used by programms like EnCase and FTK imager.

When to use which?

I use dcfldd if I know that at some point I am going to virtualize the image, or if I know that at some point I am going to mount the image and the image contains encrypted partitions or relevant volume shadow copies.

I use ewfacquire if I want the image to take up less space and I know that I will not be performing the aforementioned activities.

Imaging the drive: dcfldd

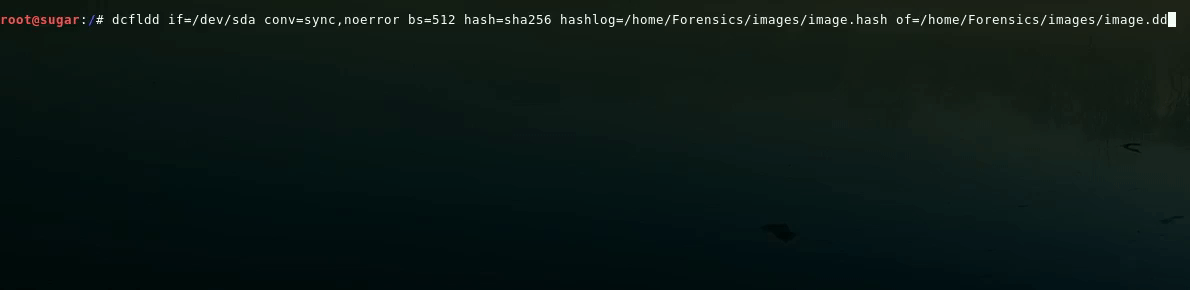

  dcfldd if=/dev/sda conv=sync,noerror bs=512 hash=sha256 hashlog=/home/Forensics/images/image.hash of=/home/Forensics/images/image.dd

if – input file;
conv=sync,noerror – synchronize and skip any read errors;
bs – blocksize;
hash – hashing algorithm of choice;
hashlog – location and filename for saving the calculated hash;
of – location and filename for the output.

Imaging the drive: ewfacquire

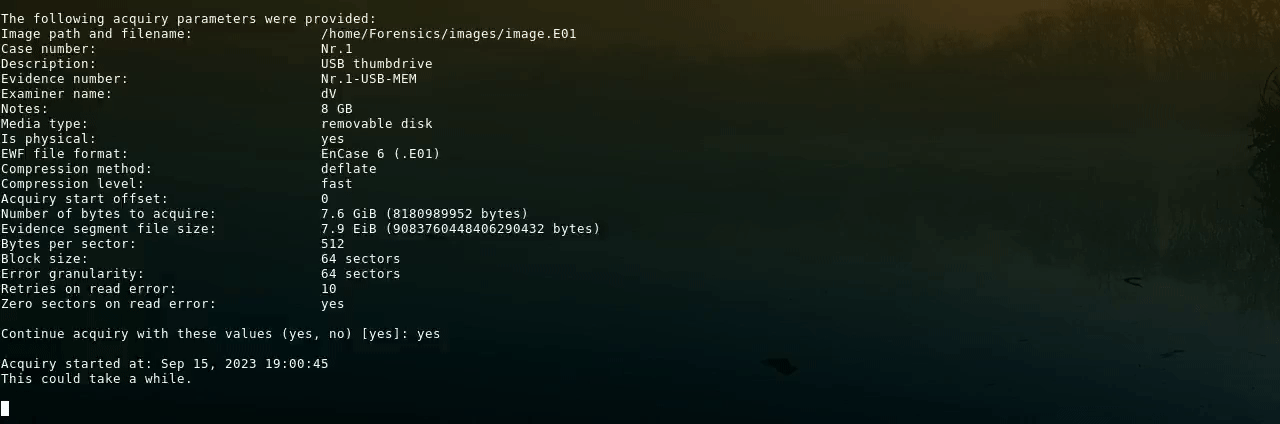

ewfacquire features an interactive prompt.


  ewfacquire /dev/sda

ewfacquire 20140807

Device information:
Bus type:				USB
Vendor:					SMI
Model:					USB DISK
Serial:					AA00000000000485

Storage media information:
Type:					Device
Media type:				Removable
Media size:				8.1 GB (8180989952 bytes)
Bytes per sector:			512

Acquiry parameters required, please provide the necessary input

Image path and filename without extension: /home/Forensics/images/image
Case number: Nr.1
Description: USB thumbdrive
Evidence number: Nr.1-USB-MEM
Examiner name: DV
Notes: 8 GB
Media type (fixed, removable, optical, memory) [removable]: removable
Media characteristics (logical, physical) [logical]: physical
Use EWF file format (ewf, smart, ftk, encase1, encase2, encase3, encase4, encase5, encase6, linen5, linen6, ewfx) [encase6]: encase6
Compression method (deflate) [deflate]: deflate
Compression level (none, empty-block, fast, best) [none]: fast
Start to acquire at offset (0 <= value <= 8180989952) [0]:
The number of bytes to acquire (0 <= value <= 8180989952) [8180989952]:
Evidence segment file size in bytes (1.0 MiB <= value <= 7.9 EiB) [1.4 GiB]: 7.9 EiB
The number of bytes per sector (1 <= value <= 4294967295) [512]:
The number of sectors to read at once (16, 32, 64, 128, 256, 512, 1024, 2048, 4096, 8192, 16384, 32768) [64]:
The number of sectors to be used as error granularity (1 <= value <= 64) [64]:
The number of retries when a read error occurs (0 <= value <= 255) [2]: 10
Wipe sectors on read error (mimic EnCase like behavior) (yes, no) [no]: yes

Media characteristics – physical for devices, logical for files;
Use EWF file format – I always go with EnCase6, to prompt for the default option in the brackets just hit enter;
Compression level – If time is not of the essence I opt for “best”;
Evidence segment file size – To avoid fragmentation I go with “7.9 EiB”;
The number of bytes per sector – device specific, can be 512, 2048, 4096, etc;
The number of sectors to read at once – impacts the imaging speed;
Error granularity – how many sectors will be discarded if a read error occurs;

The above settings are suitable for error free drives. If you encounter a bad drive you may want to decrease the number of sectors to be read at once and error granularity as well as increase retries on read error.

Imaging bad drives can take ages, if it is really bad it could be better to opt for a tool like ddrescue.
