DEPI/IPED

Publish date: Sep 13, 2023

Tags:

Digital Forensics

Today I would like to introduce you to a free and open source digital forensics tool that, in my opinion, is on par with its commercial counterparts – Digital Evidence Processor and Indexer (DEPI), or perhaps better known by its Portuguese name – Indexador e Processador de Evidências Digitais (IPED).

The industry

I’ve had the chance to work with some of the industries most recognized commercial tools, to name a few – EnCase Forensic, Magnet AXIOM, BelkaSoft Evidence Center. These programs cost considerable sums of money, for example, a single-user license of EnCase will set you back for around $3500, AXIOM, on the other hand, goes for as much as $5000. Haven’t heard of these companies offering site licenses. Single-user license means one user at a time. That’s an impressive price tag when you have a whole team to equip.

The Software

DEPI/IPED is a tool created by digital forensic experts from the Brazilian Federal Police. According to the tool’s GitHub repository it has been in continuous development since 2012 and although it has always been open source, its code was oficially published only in 2019. DEPI is published under the GNU GPL v3 license. It is written in Java, thus ensuring platform independence – it has been tested on Windows and Linux operating systems.

Localization

DEPI’s code is locale-independent, it features the Java ResourceBundle framework, allowing for easy implementation of locales. Currently DEPI is officially available in English, Spanish, Portuguese, Italian and German. Also I have created my own unofficial Latvian localization.

Processing

When using modern hardware the processing speeds can reach up to 400 gigabytes an hour.

The processing is very stable, everything that the program does is being logged and the logs can be checked in real-time.

The processing is highly customizable by default. Users can set up their own processing profiles for various scenarios by editing the configuration files which contain about 5000 lines of simple markdown code. And if that is not enough, users can always edit the code and adapt it to their specific needs.

Advanced indexing that extracts all the available metadata, Optical Character Recognition (OCR), powerful RegEx engine, image & document similarity, recursive expansion of containers, efficient data carving, custom parsers for P2P, messengers, e-mail, internet browsers, operating system artefacts, a wide range of supported disk image formats and filesystems. Those are just a few of numerous DEPI’s features.

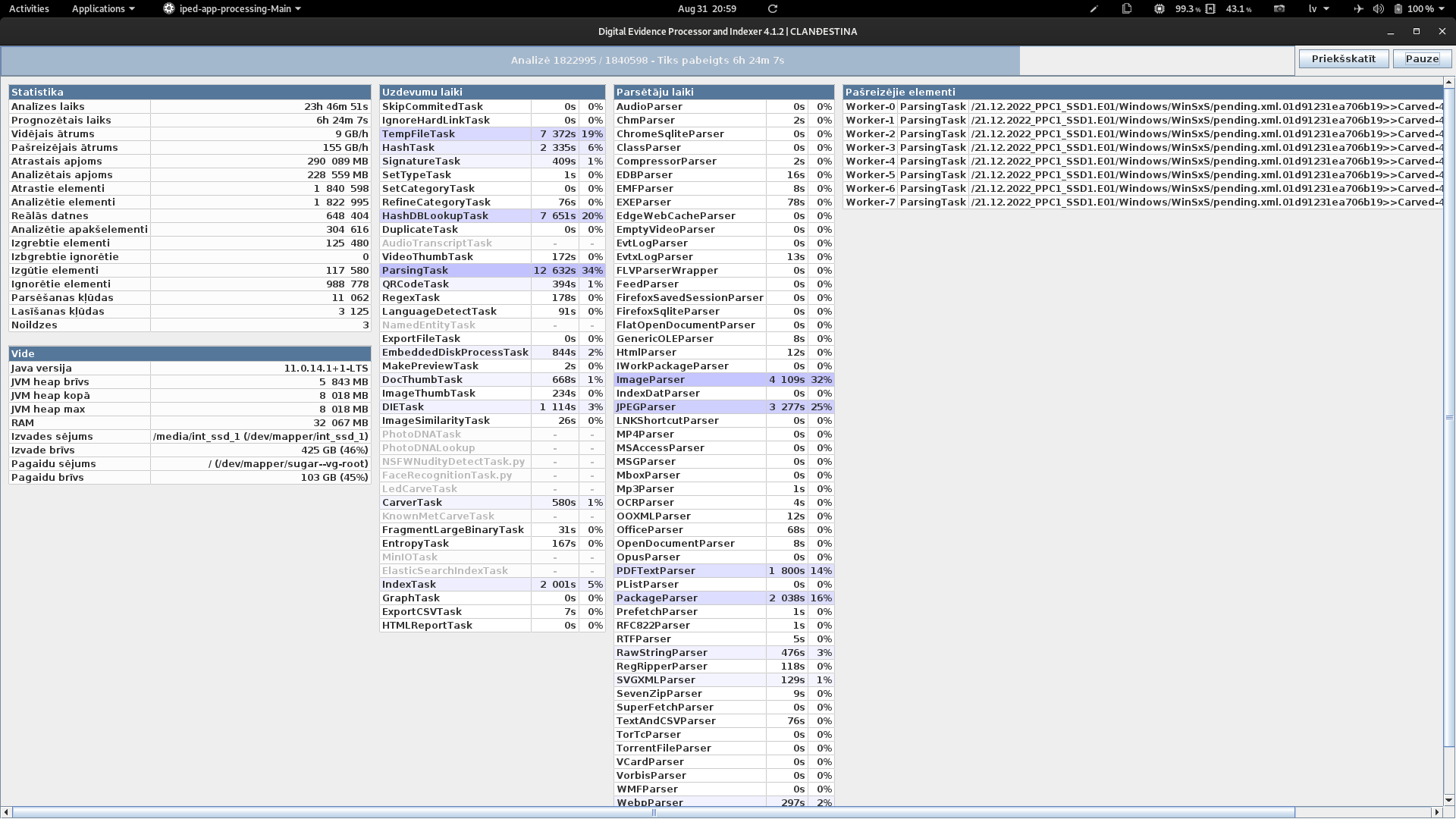

Processing interface with locale set to “Latvian”

Analysis

The analysis interface is snappy and intuitive. It features various options aimed at improving the user experience, like interface scaling, switching between light and dark themes, rearranging the panels and columns, saving the layout and loading the saved layout. The panels can be detached and moved thus allowing one to take full advantage of a multi-monitor setup.

The analysis application is fully portable, it can be opened on any Windows device without installing anything, by simply copying the containing folder and data sources.

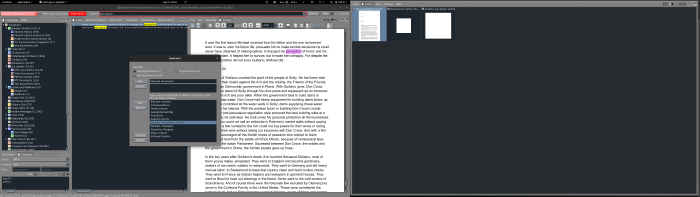

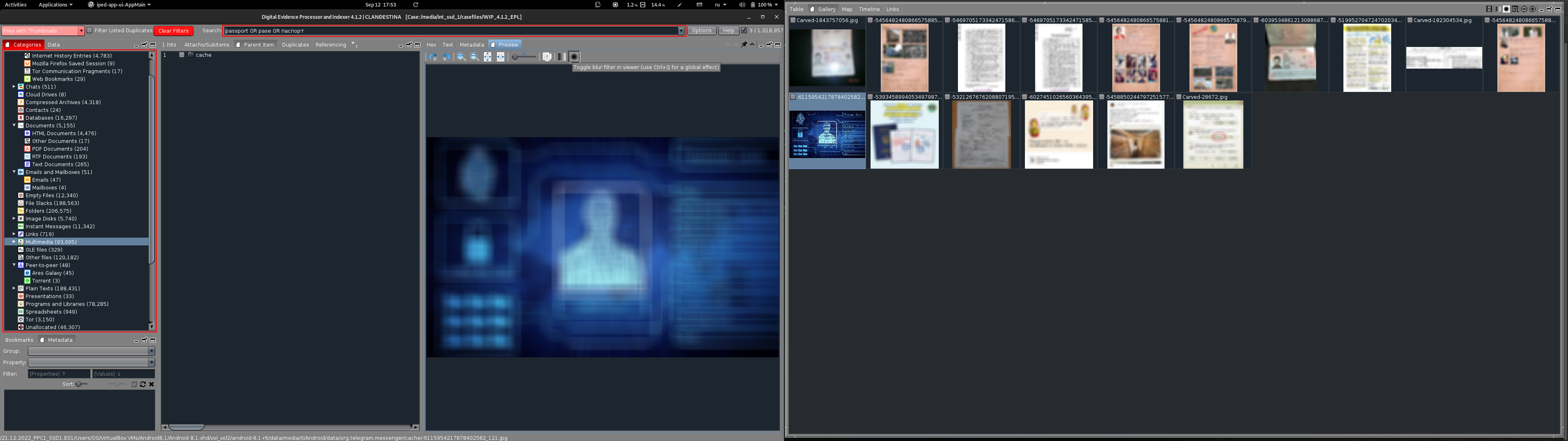

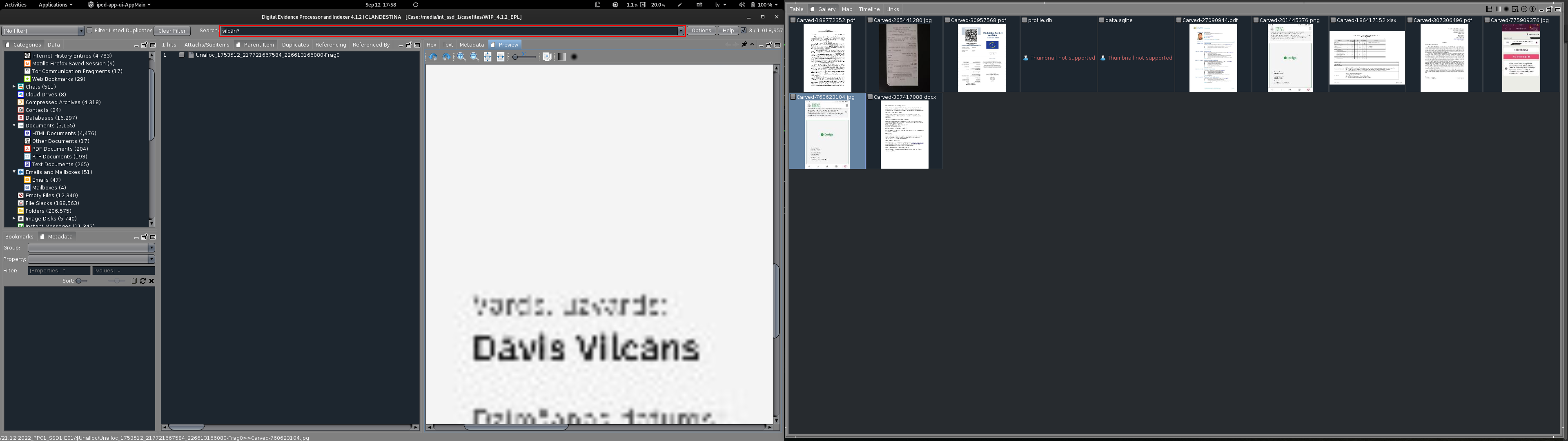

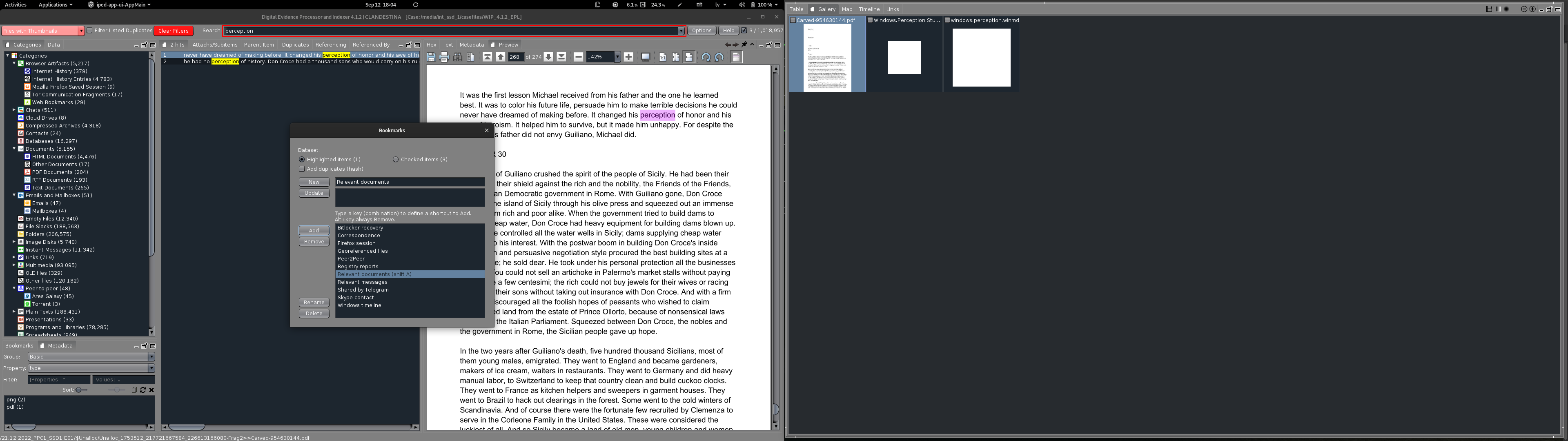

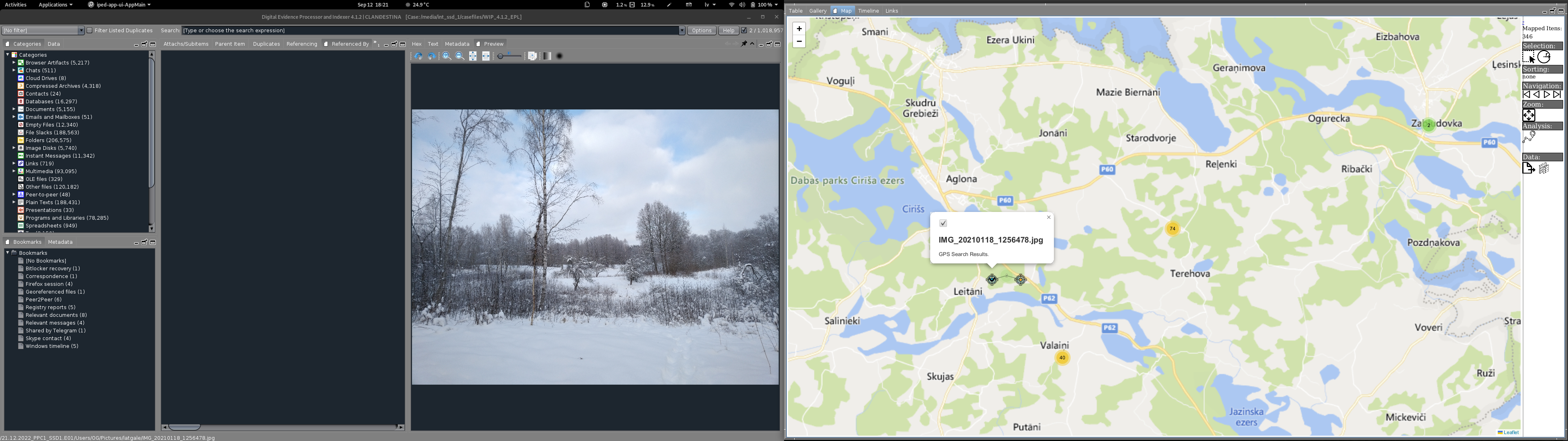

Analysis interface in a dual-monitor setup

Reporting

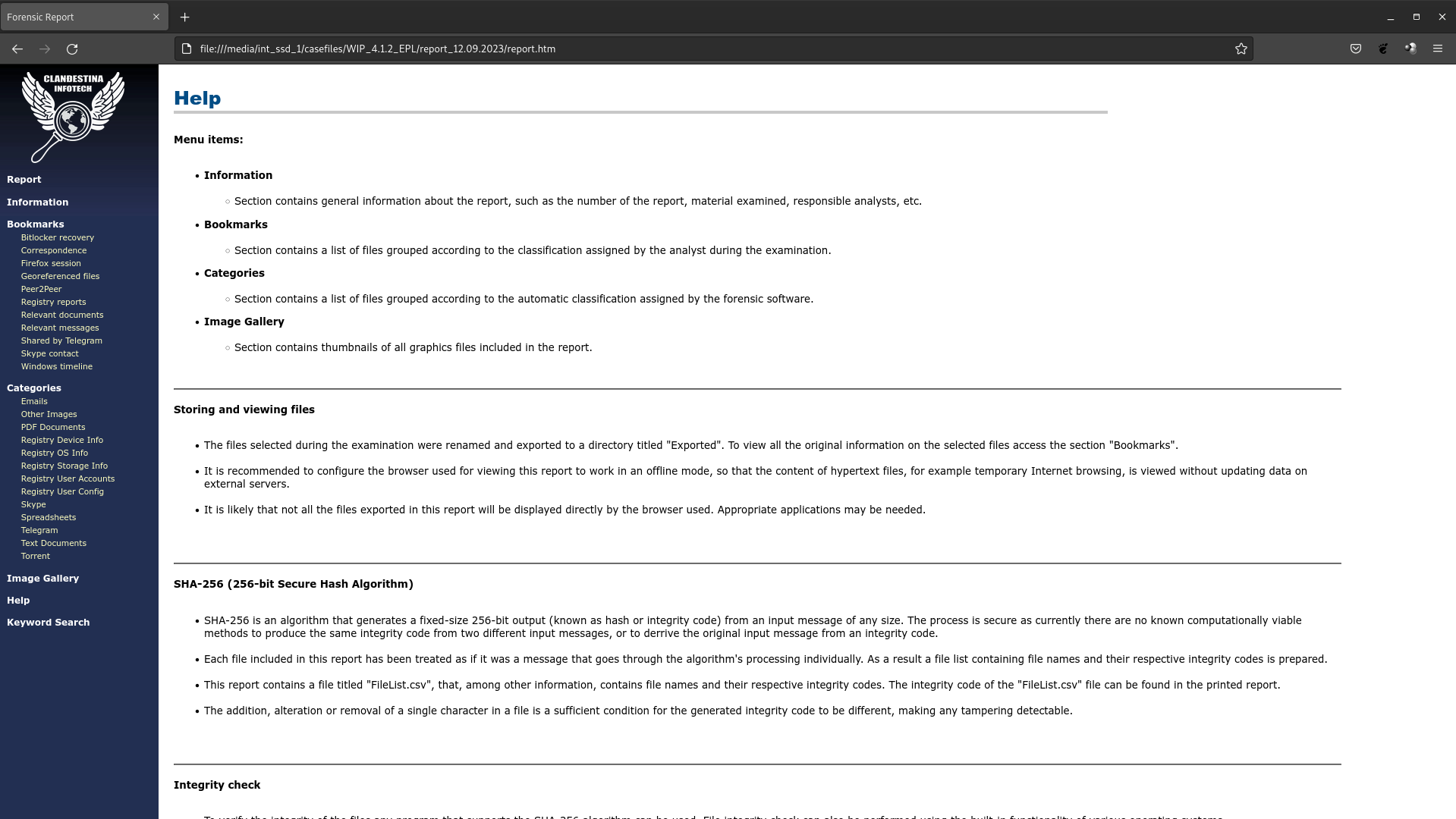

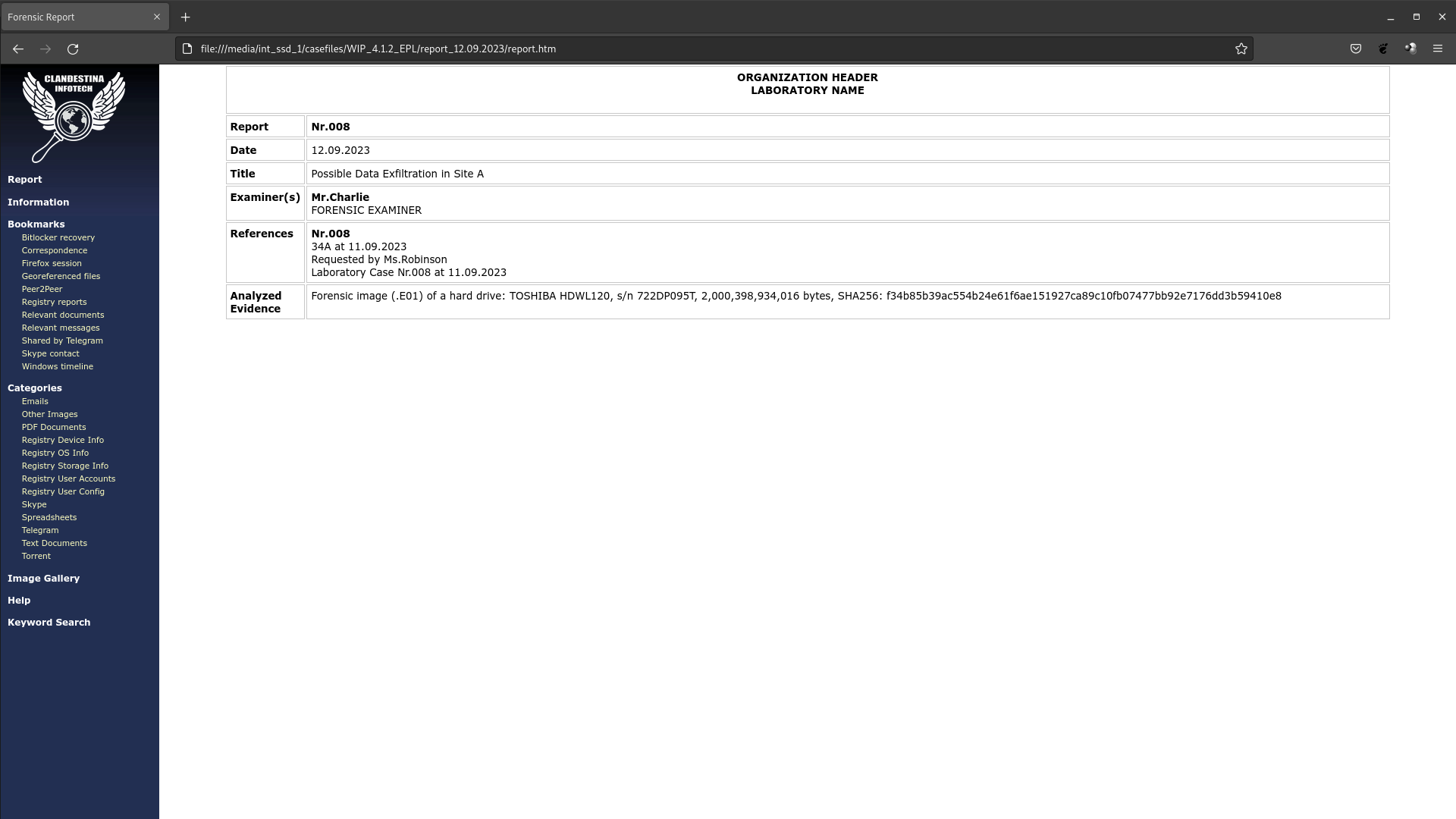

One of the most fundamental aspects of any digital forensic investigation or eDiscovery endevour is presenting the findings. DEPI allows its users to tag the relevant information and easily prepare comprehensive HTML reports. The HTML reports also contain a portable case which stakeholders and clients can launch to perform their own additional analysis.

Customization

DEPI’s major advantage over its commercial counterparts is the open source code. The field of information technology is very dynamic, constantly evolving and everchanging. Closed source solutions simply cannot keep up with the pace as well as their open source counterparts. It can take months to get a commercial company to implement a new parser in their software, however with open source it can be a matter of days, if not hours.

Also having a powerful Digital Forensics/eDiscovery solution tailored to your organization’s visual identity can have a very positive impact on stakeholders and clients, and make you stand out from your competition.

Implementation

I have assisted various organizations in implementing DEPI as a Digital Forensics, eDiscovery and Electronic Archive Management solution. If you are interested in seeing what DEPI can do for your organization, you are welcome to contact me by sending a message to: hello@dvilcans.com.
